Revision Cloud
April 18, 2007 | Architecture | 8 comments

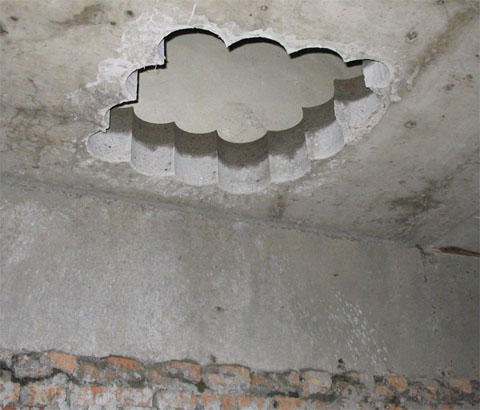

After the detail target incident, here is another one. This is also unbelievable. Think twice next time you locate your detail targets! I still think it can’t be true, it should be Photoshop!!! Do you think this could be real? I want to hear your take on it…
Category: Architecture
its real ..look at the brick wall. it should be happening in asia.. and over there. everything can happen
i don’t think this is not a detail target incident. this happens when the utility shafts can’t be installed where they are originally planned.
this kind of thing usually occurs in renovation projects, where the original structure of the building is used. (well, sort of.)
Hi,
You have awesome site, very interesting.
If its a real detail target incident..the guy who did this should be send back to school regardless of race.
I do not see the reinforcement stabs in the crosssection. Little black dots must be seen if it is a reinforced concrete slab.
I might seriously fake.
That is a real picture. If you have ever done any concrete coring you can obviously see the the water/concrete dust splattered on the bottom of the hole, on the wall, and on the bricks. I don’t believe that it is a revision cloud, but I agree with Anday and it is for a utility shaft or a new opening for a chimney.
We had a similar incident here in Helsinki:
http://www.hs.fi/kaupunki/artikkeli/Asematunnelin+reiän+poraajasta+ei+vieläkään+tietoa/1135250657403
This hole in a concrete wall, which was supposed to be waterproof, caused a massive flood and closed down our main metro station for long time
lol hillarious
